XQV Vacuum Intelligent Grouting Equipment

For prestressed& post-tensionning

Model No:IGS series

Payment Type: T/T

MOQ: 1 set

Delivery: 10-30 days

在此添加您的标题文本

这是示例文本，单击 “编辑” 按钮更改此文本。

Technical Parameters

Parameter	Value / Description
Model	IGS Series (Auto grouting trolley + Vacuum system + Grouting pump)
Mixing Speed	1440 rpm
Blade Linear Speed	< 15 m/s
Weighing Accuracy	±0.4% (better than railway standard ±1%)
Max. Mixing Capacity	350 kg / batch
Vacuum Degree	Max. -0.097 MPa (better than -0.092 MPa standard)
Theoretical Grouting Flow	3 m³/h
Pressure Gauge Range	2.5 MPa
Optional Configuration	DYL90 speed-adjustable grouting pump (stepless pressure regulation & holding)

Functional Modules&Descriptions

Module	Description
Auto Grouting Trolley (High-speed mixing)	Automatic feeding, metering, pressure maintaining, LCD display. Mixing speed 1440 rpm, blade linear speed <15 m/s, weighing accuracy ±0.4% (exceeds railway standard). Records each mixing data; historical data can be retrieved. Measuring unit accurate to two decimal places.
Working Procedure	Auto water filling to 100% (adjustable) → high-speed mixing runs → automatically add grouting agent and cement → mix for 2 min → discharge to storage tank with mixing function. Manual mode also available for complete or step-by-step operation.
Vacuum System	Extracts air before grouting. Max. vacuum degree -0.097 MPa (exceeds -0.092 MPa standard). Removes air and water, avoids bubbles and cavities, ensures grouting quality.
Grouting Pump	Continuous mode, no pressure fluctuation, no bubbles. Theoretical output 3 m³/h. Optional electric or manual pressure maintaining (tank). With DYL90 pump: stepless pressure regulation and holding, freely adjustable range, stable pressure gauge reading.

Technical Advantages

High-Precision Weighing

±0.4% accuracy, better than railway standard ±1%

Vacuum Pre-Grouting

Max -0.097 MPa, removes air & water, no cavities

Automatic Data Recording

Each batch recorded, historical data retrievable

Stepless Pressure Regulation

DYL90 pump, freely adjustable range, stable gauge

Manual & Auto Dual Mode

Flexible operation, manual override available

Application/Typical Projects

Bridge Construction

Post-tensioning grouting for box girders, cable-stayed bridges, and segmental bridges.

Highway & Railway

Prestressed concrete beams, sleepers, and track slabs for high-speed rail.

High-Rise Buildings

Core wall, transfer plate, and foundation post-tensioning for seismic resistance.

Hydropower & Wind

Turbine foundations, dam grouting, and wind tower base post-tensioning.

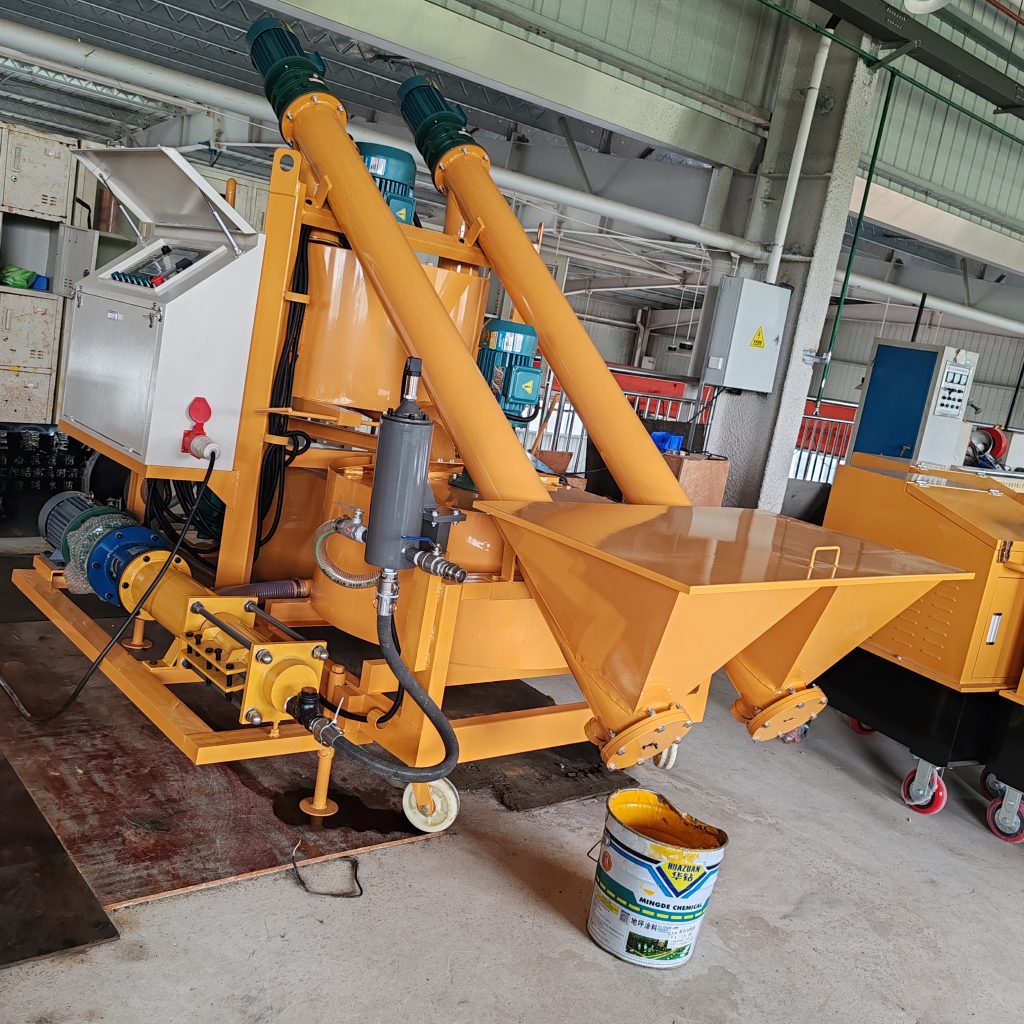

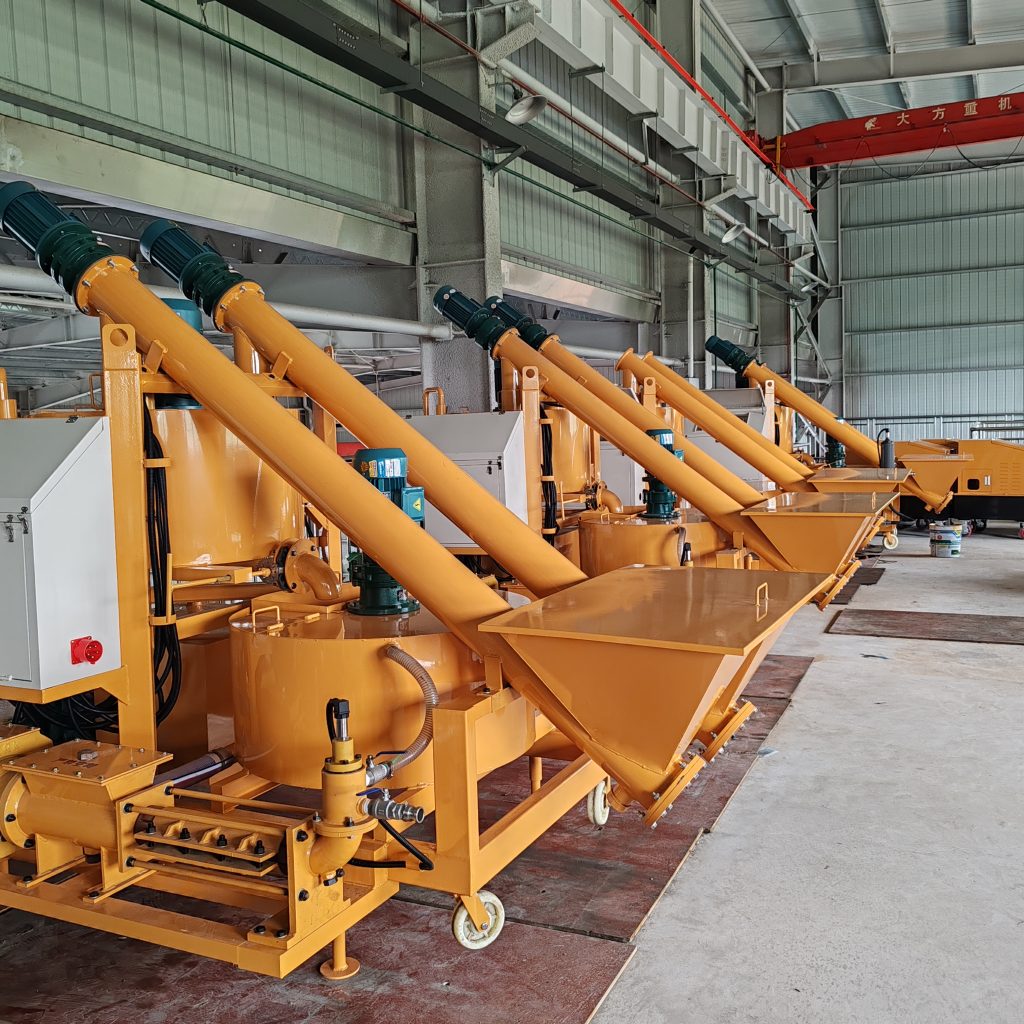

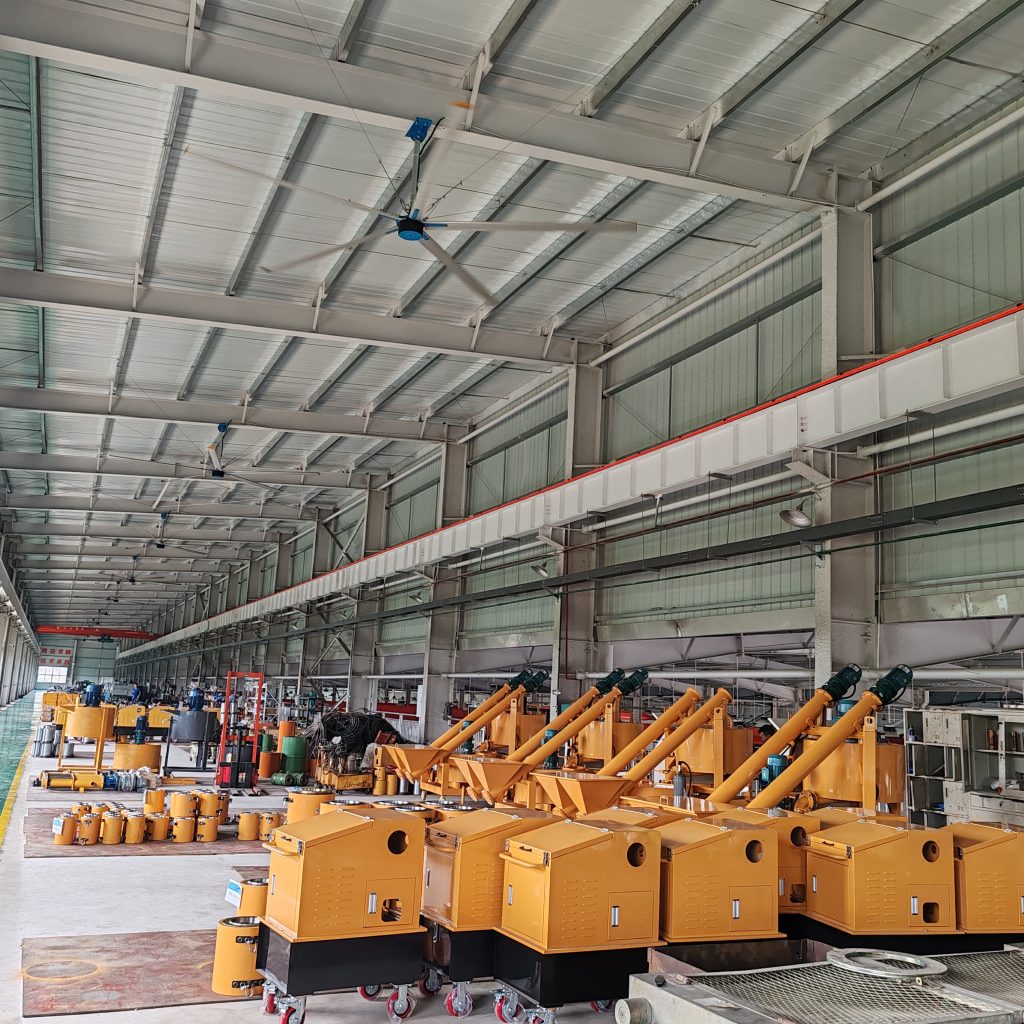

Workshop

Our Manufacturing Base – Liuzhou Xuanqiao Prestressed Machinery Co., Ltd.

Located in Liuzhou, Guangxi – a key industrial hub for prestressed technology – our modern workshop covers over 10,000㎡. We operate CNC machining centers, automated assembly lines, and precision testing equipment to ensure consistent quality.

Every batch of raw material is inspected, and finished products (anchors, jacks, pumps, ducts) are tested in our in‑house laboratory for mechanical performance and pressure resistance. We are certified under ISO 9001:2015 and comply with FIP international standards.

Annual capacity: 6 million anchor holes and 1,000+ sets of hydraulic equipment. Our experienced technicians and engineers follow strict SOPs to guarantee reliability.

We maintain sufficient raw material inventory and finished goods for fast delivery. Continuous investment in equipment and training keeps us at the forefront of prestressed manufacturing – because a strong factory means reliable products and long‑term trust.
