XQV PC Strand Bracket – Prestressed Concrete Strand Positioning Bracket
Product Introduction
The XQV PC Strand Bracket is a specially engineered component designed to position and support prestressing steel strands (PC strands) during both construction and service life. Its precise structural design – featuring dedicated through-holes or clamping slots – accurately restrains strands, preventing any lateral or longitudinal displacement under tension or concrete pouring.
In prestressed concrete structures, steel strands bear extremely high tensile forces. The strand bracket ensures rational stress transfer between the steel strands and the surrounding concrete, effectively generating pre-compression in the concrete. This significantly enhances the structural load-bearing capacity, crack resistance, and long-term durability of bridge girders, building slabs, and other prestressed members.
Manufactured from engineering-grade PE (Polyethylene) with excellent mechanical strength and corrosion resistance, XQV strand brackets are ideal for aggressive environments such as bridge decks, marine structures, and underground parking garages. They are lightweight, easy to install, and compatible with most standard PC strand diameters.
Key Features & Advantages
Multiple holes/clamping slots keep strands at exact design coordinates, eliminating shifting during concrete placement.
Impact-resistant polyethylene with UV resistance, long-term mechanical stability, and inertness to chemicals.
Models A-01 to D-12 cover outer diameters from 66 mm to 110 mm, adapting to various strand layouts and concrete covers.
Inert to moisture, chlorides, and most chemicals – ideal for bridge decks, marine environments, and underground structures.
Lightweight yet rigid design allows quick placement and secure fixing without special tools.
Improves load distribution and reduces micro-cracking, extending service life of prestressed members.
Technical Specifications – XQV PC Strand Bracket (PE Series)
| Model | Outer Diameter (mm) | Thickness (mm) | Inner Hole Diameter (mm) | Outer Hole Diameter (mm) |
|---|---|---|---|---|
| A-01 | 72 | 19 | 27 | 17 |
| A-02 | 88 | 29 | 38 | 25 |
| A-03 | 66 | 16 | 30 | 21 |
| B-04 | 90 | 35 | 30 | 21 |
| B-05 | 80 | 15 | 28 | 19 |
| B-06 | 82 | 15 | 32 | 18 |
| C-07 | 95 | 16 | 28 | 20 |
| C-08 | 86 | 18 | 30 | 20 |
| C-09 | 85 | 15 | 30 | 19 |
| D-10 | 97 | 15 | 32 | 23 |
| D-11 | 110 | 15 | 59 | 18 |
| D-12 | 102 | 16 | 34 | 21 |
* Outer hole diameter refers to auxiliary fixing holes for tie wires or secondary strand positioning. Custom dimensions available upon request.
A01
A02
A03
B04
B05
B06
C07
C08
C09
D10
D11
D12
Parts Specification
| Component Name | Specification | Materials | Surface Treatment | PAG Method | Standard |
|---|---|---|---|---|---|
| Strand Bracket | – | PE / A3 / 45# … | Corrosion Protection | cardboard box or wooden case | GB/T14370-2015, JT/T329-2010, TB/T3193, ISO, CE, ASTM, BS … |
* Custom materials and packaging available upon request.

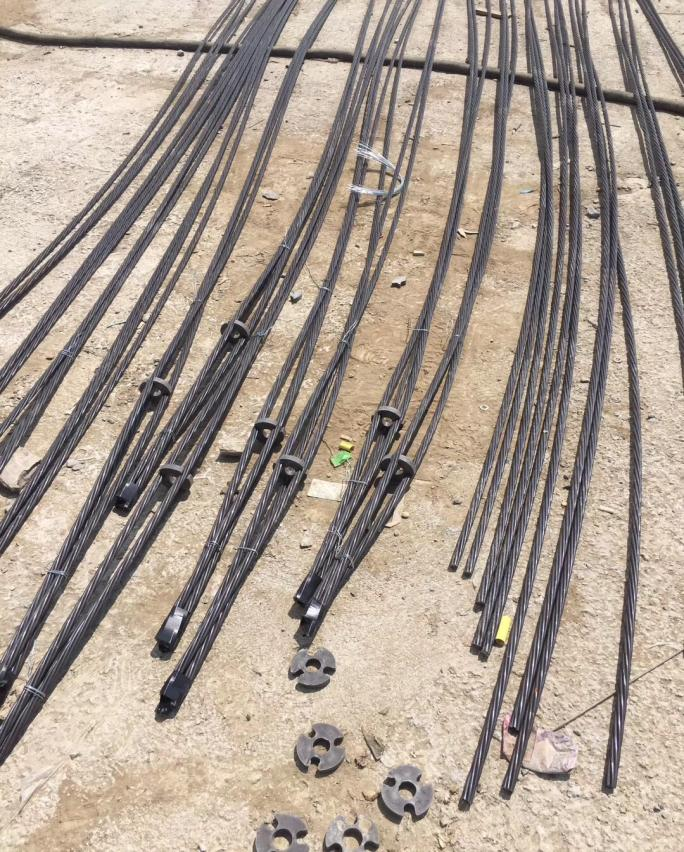

Application
The XQV PC Strand Bracket is widely used in various prestressed concrete structures, ensuring accurate strand positioning and reliable force transmission. Typical applications include:
- Precast T-Beams & Box Girders for bridges
- Post-tensioned bridge decks and segmental construction
- Prestressed concrete slabs (flat slabs, ribbed slabs)
- Concrete sleepers and railway bearers
- Wind tower prestressed foundations
- Parking structures and stadium grandstands
- Underground structures and tunnel linings
Workshop
Our Manufacturing Base – Liuzhou Xuanqiao Prestressed Machinery Co., Ltd.</p >
Located in Liuzhou, Guangxi – a key industrial hub for prestressed technology – our modern workshop covers over 10,000㎡. We operate CNC machining centers, automated assembly lines, and precision testing equipment to ensure consistent quality.</p >
Every batch of raw material is inspected, and finished products (anchors, jacks, pumps, ducts) are tested in our in‑house laboratory for mechanical performance and pressure resistance. We are certified under ISO 9001:2015 and comply with FIP international standards.</p >
Annual capacity: 6 million anchor holes and 1,000+ sets of hydraulic equipment. Our experienced technicians and engineers follow strict SOPs to guarantee reliability.</p >
We maintain sufficient raw material inventory and finished goods for fast delivery. Continuous investment in equipment and training keeps us at the forefront of prestressed manufacturing – because a strong factory means reliable products and long‑term trust.</p >
